• Acetylene Piston Compressor

1. Introduction of vertical acetylene piston compressor

Piston type acetylene compressor is mainly used in the chemical industry and to fill acetylene cylinder for the acetylene station. Generally the suction pressure is atmospheric pressure, and the exhaust pressure is up to 2.5Mpa, the exhaust capacity is from 20m3/h to 100m3/h. acetylene gas is specialty industry gas with flammable and explosive, and dissolved acetylene equipment is a special chemical equipment strictly supervised by the state. Safety is the first for acetylene compressor, which is strict in accordance with the standard of national machinery industry: JB/T9103.1-1999 the regulation of <reciprocating piston acetylene compressor technical conditions>

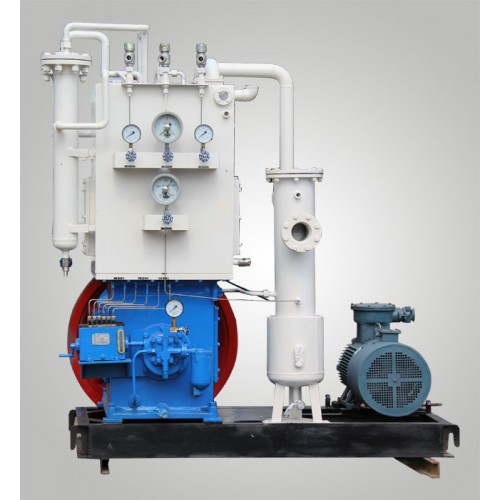

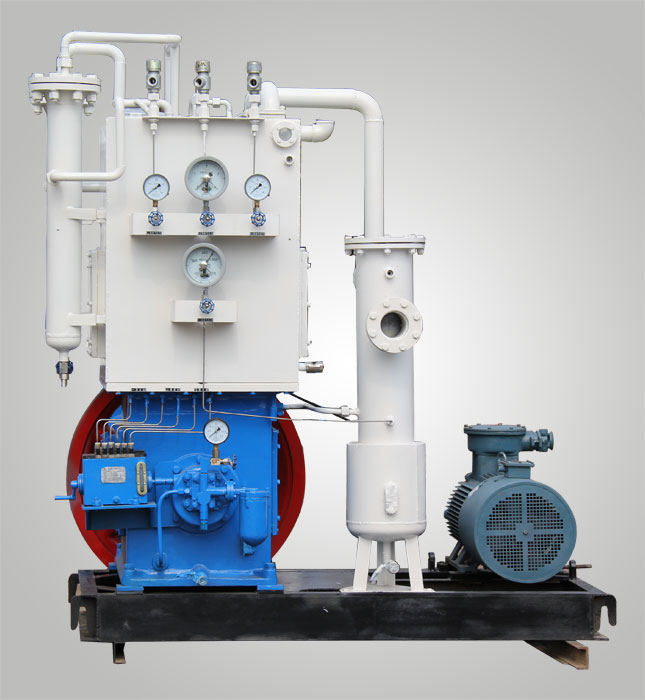

The vertical acetylene piston compressor produced by our company is a vertical, double row, three-stage differential piston water-cooled structure. driven by explosion-proof motor, through gear reducer, and then directly driven by cross coupling. The axis of each stage cylinder is arranged vertically.

In order to prevent the risk from air entering the suction port during the operation of compressor, the positive pressure protection (lower limit control) must be provided, hereby the suction pressure monitoring protection device is installed in the suction pipe of the compressor, the operation of the compressor will be shut down as soon as the suction pressure is lowered to 196pa (20mmH20) or lower than the set pressure. In order to prevent the compressor from the overpressure, the exhaust pressure monitoring pressure device (upper limit control) is installed in the exhaust pipe of the compressor, the operation of the compressor will be shut down as soon as the exhaust pressure rises to 2.5Mpa or exceeds the set pressure.

2. Fatures of vertical acetylene piston compressor:

The vertical acetylene piston compressor has the advantages of small occupation area, good foundation stress and unrestricted deformation during the operation of the machine, also compact structure, stable operation and safe use, which is widely used in acetylene, factory, chemical industry, metallurgy and other industries. Our company continuously use advance technology to produce high efficiency, high safety and high quality compressor.

Acetylene compressor is equipped with advanced electronic control safety protection and automatic control device:

1) Suction under pressure protection device: the first stage suction pressure ≤0.2kpa, automatic shutdown.

2) Exhaust overpressure protection device: maximum working pressure ≥2.65mpa, automatic shutdown.

Thereby it can effectively control the potential safety hazards caused by manual or electric errors.

Our products have the advantages of strong economy, stable performance, stable operation and convenient maintenance.
